Clamps Fact Sheet
Micro Waterjet
Get Your Custom Solution
Call 704-948-1223 or Schedule A Free Consultation
"*" indicates required fields
Facts & Figures

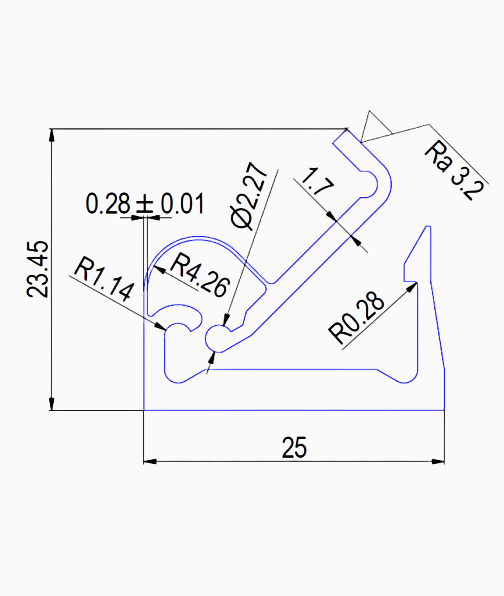

- Name: Clamp
- Material: 1.4310/X10CrNi188 – CNS
- Material thickness: 1 mm
- Kerf: 0.3 mm
- Water pressure: 55,000 psi (3,800 bar)
- Quality grade: Q7
- Feed rate: 180 mm/min.
- Machining time: 1 minute 8 seconds
Benefits of Microwaterjet® Cutting on Clamps

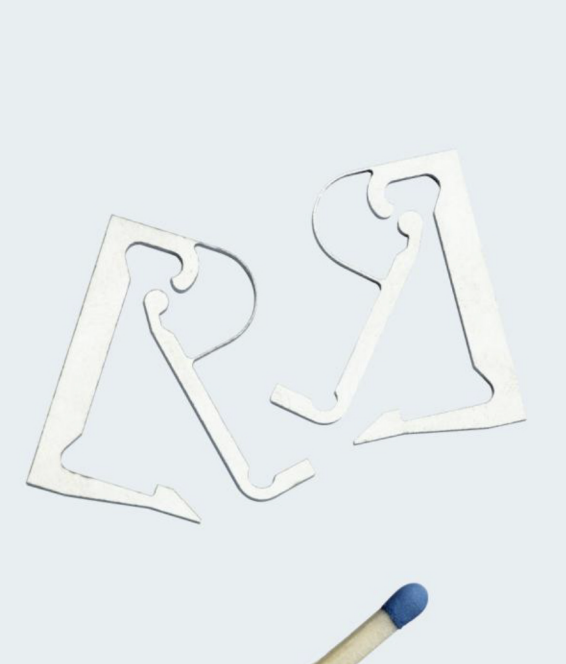

- Detailed precision machining of spring-steel land widths
- Despite land width of 0.28 mm, spring properties remain
- No change in colour
- No thermal effect
- Unchanged material properties
Alternative
Heat has a negative effect on material properties when using classic hot-cutting procedures such as wire-cut EDM or YAG Laser. The elasticity is affected and the material colour changes.
