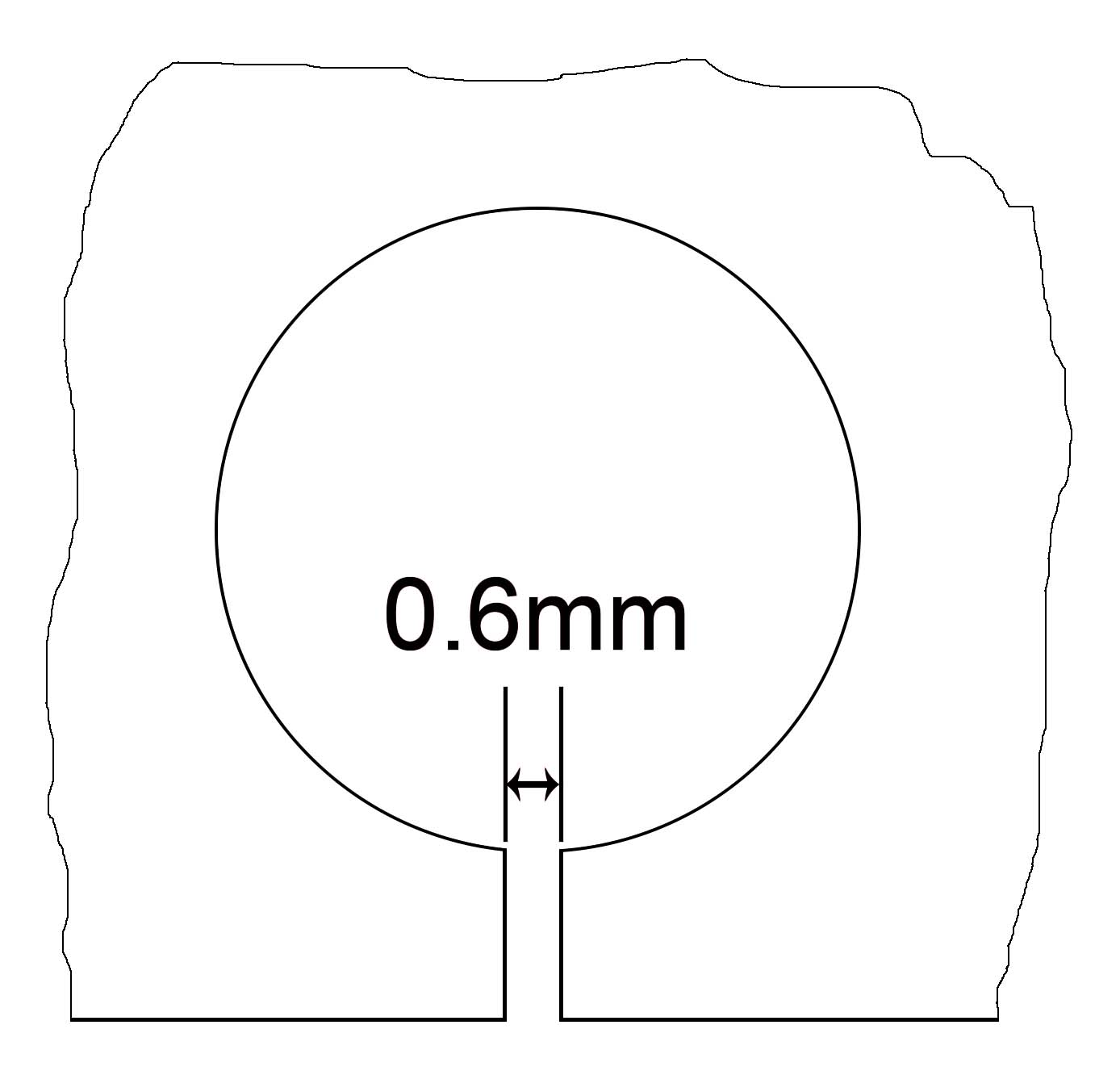

mechanical part with 0.6mm diameter

Scientific Research #2

Parts for Scientific Research

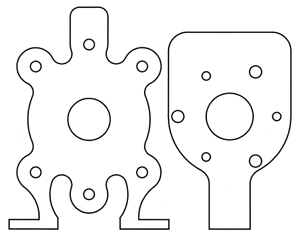

The part pictured is one of many parts microwaterjet® has cut for use in scientific research field.

The microwaterjet® process was chosen over other technologies because:

  1. Material and thickness was not compatible with laser cutting
  2. Wire EDM would have been a slower and more expensive solution
  3. Conventional water jet would not have been capable of producing the required finish or feature size.

The tallest piece is 61mm (2.40”) and the entire set of pieces are cut from 6061 Aluminum and range in thickness from 3mm to 16mm (0.12” to 0.63”). The smallest feature was a hole with a 0.4 mm (0.016”) diameter.
